I’m making a 3d tic tac toe game in React (extending the fcc lab) that adds a vertical dimension to the game. EDIT: You can test my app here: https://3-dads-tactical-tuba-time.vercel.app/
Everything was working ok until I tried to add a computer player. I know it has something to do with it state update vs. DOM. I still fundamentally do not understand how to work with React state.

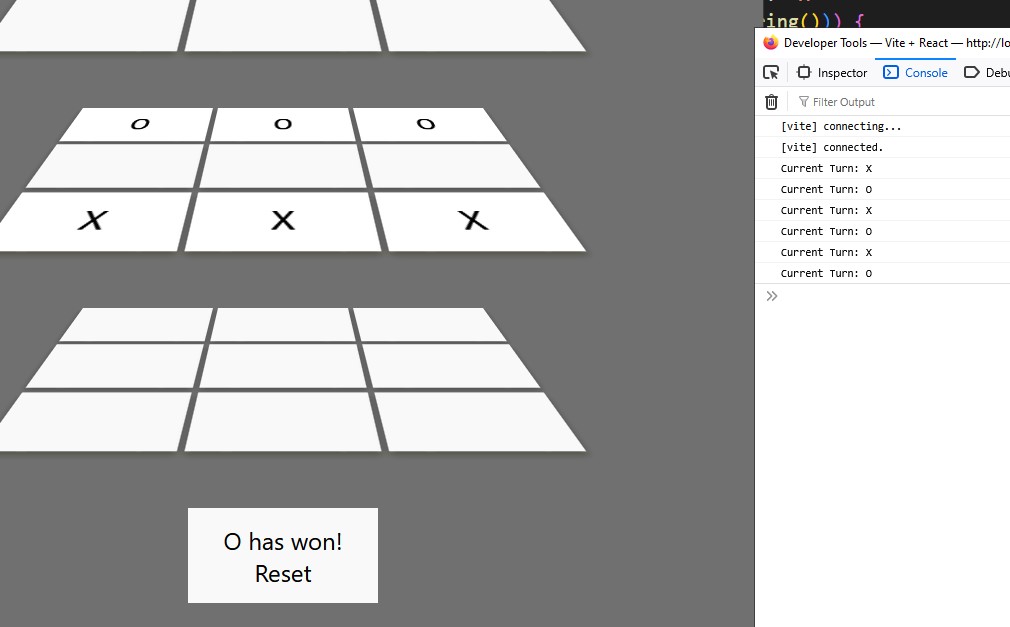

For example, if player X wins, computer O will still take a turn (and can win, overwriting X’s win!). If I win as X though, the board is disabled. The logic for both is the same, just a line:
if (winner) return;
and winner is using setState.
Not sure how to get computermove to see the new state. I tried using useEffect() to check for a winner when the board changes and I tried adding a setTimeout delay on the computermove to wait for state update.

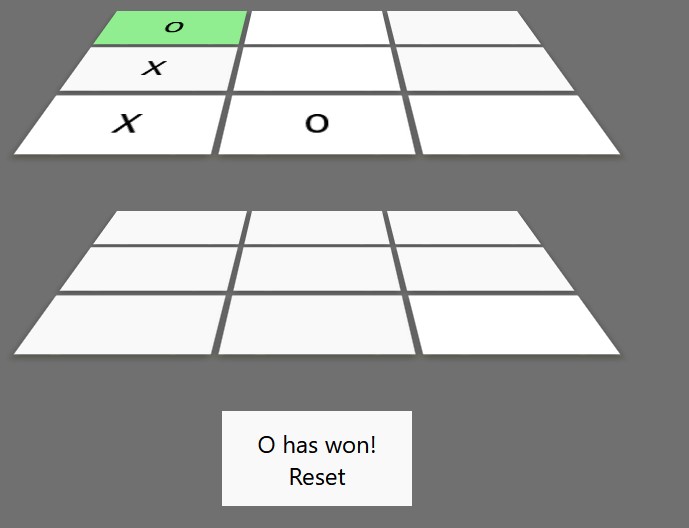

Additionally there’s some other problems with computermove like this happens:
But it might also be related to detecting state although that is odd.
Any help would be greatly appreciated, thanks!
import { useState, useRef, useEffect } from 'react';
import './App.css'
const winningPatterns = [
// Horizontal rows in each layer (XY plane)
["0,0,0","0,1,0","0,2,0"],
["0,0,1","0,1,1","0,2,1"],
["0,0,2","0,1,2","0,2,2"],
["1,0,0","1,1,0","1,2,0"],
["1,0,1","1,1,1","1,2,1"],
["1,0,2","1,1,2","1,2,2"],
["2,0,0","2,1,0","2,2,0"],
["2,0,1","2,1,1","2,2,1"],
["2,0,2","2,1,2","2,2,2"],
// Vertical columns in each layer (XY plane)
["0,0,0","0,0,1","0,0,2"],
["0,1,0","0,1,1","0,1,2"],
["0,2,0","0,2,1","0,2,2"],
["1,0,0","1,0,1","1,0,2"],
["1,1,0","1,1,1","1,1,2"],
["1,2,0","1,2,1","1,2,2"],
["2,0,0","2,0,1","2,0,2"],
["2,1,0","2,1,1","2,1,2"],
["2,2,0","2,2,1","2,2,2"],
// Lines through layers (Z axis)
["0,0,0","1,0,0","2,0,0"],
["0,1,0","1,1,0","2,1,0"],
["0,2,0","1,2,0","2,2,0"],
["0,0,1","1,0,1","2,0,1"],
["0,1,1","1,1,1","2,1,1"],
["0,2,1","1,2,1","2,2,1"],
["0,0,2","1,0,2","2,0,2"],
["0,1,2","1,1,2","2,1,2"],
["0,2,2","1,2,2","2,2,2"],
// Diagonals in XY planes (each layer)
["0,0,0","0,1,1","0,2,2"],
["0,2,0","0,1,1","0,0,2"],
["1,0,0","1,1,1","1,2,2"],
["1,2,0","1,1,1","1,0,2"],
["2,0,0","2,1,1","2,2,2"],
["2,2,0","2,1,1","2,0,2"],
// Diagonals through layers (XZ planes)
["0,0,0","1,1,0","2,2,0"],
["0,2,0","1,1,0","2,0,0"],
["0,0,1","1,1,1","2,2,1"],
["0,2,1","1,1,1","2,0,1"],
["0,0,2","1,1,2","2,2,2"],
["0,2,2","1,1,2","2,0,2"],
// Diagonals through layers (YZ planes)
["0,0,0","1,0,1","2,0,2"],
["0,0,2","1,0,1","2,0,0"],
["0,1,0","1,1,1","2,1,2"],
["0,1,2","1,1,1","2,1,0"],
["0,2,0","1,2,1","2,2,2"],
["0,2,2","1,2,1","2,2,0"],
// 4 space diagonals through the cube
["0,0,0","1,1,1","2,2,2"],
["0,2,0","1,1,1","2,0,2"],
["0,0,2","1,1,1","2,2,0"],
["0,2,2","1,1,1","2,0,0"]
];
export default function App() {
const initialGrid = [
[
["", "", ""],
["", "", ""],
["", "", ""]
],
[
["", "", ""],
["", "", ""],
["", "", ""]
],
[
["", "", ""],
["", "", ""],
["", "", ""]
],
];
const [turn, setTurn] = useState("X")
const [grid, setGrid] = useState(initialGrid)
const [lastMove, setLastMove] = useState([])
const [winner, setWinner] = useState(false)
const [moves, setMoves] = useState(0)
const [xplayer, setXplayer] = useState(false)
const [oplayer, setOplayer] = useState(true)
const fin = useRef(null);
useEffect(() => {
for (let pattern of winningPatterns) {
let currentTurn = turn == "X"? "O" : "X"
if (pattern.includes(lastMove.toString())) {
let win = true;
for (let array of pattern) {
let [zz,xx,yy] = array.split(",")
console.log("grid",grid[zz][xx][yy],"turn", currentTurn)
if (grid[zz][xx][yy] != currentTurn) win = false;
}
if (win) {
setWinner(`${currentTurn} has won!`)
highlight(pattern);
return;
}
}
}
}, [turn])
const highlight = (array) => {
for (let point of array) {
document.getElementById(point.replaceAll(",","")).style.backgroundColor = "lightgreen";
}
let resetColor = setTimeout(() => {
for (let point of array) {
document.getElementById(point.replaceAll(",","")).style.backgroundColor = "white";
}
}, 5000)
}
const computerMove = (currentTurn,point) => {
//delay for state update
const move = setTimeout(() => {
//check the winning patters that contain recent move
for (let pattern of winningPatterns) {
if (pattern.includes(point)) {
//remove previous move
pattern.splice(pattern.indexOf(point), 1);
//choose a free space from the pattern
for (let array of pattern) {
let [zz,xx,yy] = array.split(",")
if (grid[zz][xx][yy] == "") {
if (winner) return;
handleClick(zz,xx,yy,currentTurn);
return;
}
}
}
}
}, 500)
}
const finish = (result) => {
if (result == "tie") {
fin.current.innerText = "It's a tie!"
} else {
fin.current.innerText = `${result} has won!`
}
fin.current.style.visibility = "visible"
}
const handleClick = (z,x,y,currentTurn) => {
setMoves(moves + 1)
setGrid(prev => {
let na = [...prev]
na[z][x][y] = currentTurn
return na
})
setLastMove([z,x,y])
setTurn(prev => prev == "X"? "O" : "X")
let next = currentTurn == "X"? "O" : "X";
if (next == "O" && oplayer) computerMove("O",[z,x,y].toString());
//draw
if (moves == 26) setWinner("It's a tie!")
}
return (
<div id="game">
<p id="computer">
Computer controls:
<label htmlFor="xplayer">X</label>
<input type="checkbox" id="xplayer" name="xplayer" checked={xplayer} onChange={() => setXplayer(!xplayer)} />
<label htmlFor="oplayer">O</label>
<input type="checkbox" id="oplayer" name="oplayer" checked={oplayer} onChange={() => setOplayer(!oplayer)} />
</p>
<div className='board-wrapper'>
<div className="board">
{
grid[0].map((row,x) => {
return row.map((square, y) => {
return <button
onClick={(e) => {
if (e.target.innerText != "") return;
if (winner) return;
handleClick(0,x,y,turn);
}}
key={"0"+x+y}
id={"0"+x+y}
className="square">{square}</button>
})
})
}
</div>
</div>
<div className='board-wrapper'>
<div className="board">
{
grid[1].map((row,x) => {
return row.map((square, y) => {
return <button
onClick={(e) => {
if (e.target.innerText != "") return;
if (winner) return;
handleClick(1,x,y,turn);
}}
key={"1"+x+y}
id={"1"+x+y}
className="square">{square}</button>
})
})
}
</div>
</div>
<div className='board-wrapper'>
<div className="board">
{
grid[2].map((row,x) => {
return row.map((square, y) => {
return <button
onClick={(e) => {
if (e.target.innerText != "") return;
if (winner) return;
handleClick(2,x,y,turn);
}}
key={"2"+x+y}
id={"2"+x+y}
className="square">{square}</button>
})
})
}
</div>
</div>
<button onClick={() => {
setMoves(0)
//fin.current.style.display = "none"
setWinner(false)
setGrid(initialGrid);
setTurn("X");
}
} id="reset">{winner ? `${winner}Reset` : `Reset`}</button>
</div>
)
}
html,
body {
height: 100%;
margin: 0;
}
#computer {
z-index: 100;
}
#game {
position: fixed;
width: 100%;
height: 100%;
left: 0;
top: 0;
background: rgba(51, 51, 51, 0.7);
z-index: 10;
display: flex;
flex-direction: column;
align-items: center;
justify-content: center;
text-align: center;
}
.board-wrapper {
perspective: 450px; /* lower more extreme*/
transform-style: preserve-3d;
}
.board {
margin: auto;
display: grid;
grid-template-columns: repeat(3, 1fr);
grid-template-rows: repeat(3, 1fr);
gap: 5px;
width: 400px;
height: 200px;
transform: rotateX(50deg); /* Tilt the board backward */
transform-origin: top center;
box-shadow: 0px 5px 1px rgba(117, 116, 97, 0.5);
}
button {
width: 100%;
height: 100%;
font-size: 2rem;
cursor: pointer;
border-radius: 0 !important;
transition: 1s;
}
#reset {
height: 95px;
width: 190px;
font-size: 1.5rem;
}
.square {
width: 100%;
height: 100%;
font-size: 2rem;
font-family: monospace;
line-height: 1;
text-align: center;
vertical-align: middle;
display: flex;
align-items: center;
justify-content: center;
padding: 0;
box-sizing: border-box;
transform: translateZ(20px);
box-shadow: 0 4px 6px rgba(0, 0, 0, 0.3);
}
