Hello! I’m pretty proud of my implementation of Bubble Sort below, and it appears to match the example output, but I need some help passing Steps 18 and 19.
-
- After you click
#sort-btn,#array-containershould contain as manydivelements as the steps required by the Bubble Sort algorithm to sort the starting array, including thedivrepresenting the starting array and adivrepresenting the sorted array.
- After you click
-
- After you click
#sort-btn, eachdivwithin#array-containershould contain fivespan, each with a number as its text, and arranged to represent the steps required by Bubble Sort algorithm to sort the starting array.
- After you click

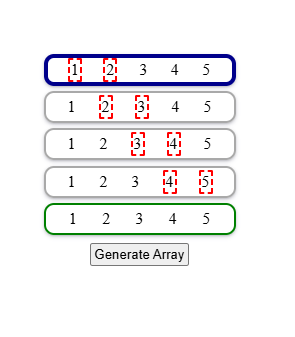

FCC example output (left) my output on same array (right):
My output on presorted array
Where do you think I’m going wrong on this one?
Build a Sorting Visualizer: Build a Sorting Visualizer | freeCodeCamp.org
My code:
function generateElement() {
return Math.floor(Math.random() * 100 + 1);
}
function generateArray() {
let arr = []
for (let i = 0; i < 5; i++) {
arr.push(generateElement())
}
return arr;
}
function generateContainer() {
return document.createElement("div");
}
function fillArrContainer(element, array) {
for (let i = 0; i < 5; i++) {
let span = element.appendChild(document.createElement("span"))
span.textContent = `${array[i]}`
}
}
function isOrdered(int1, int2) {
return int1 <= int2;
}
function swapElements(array, index) {
if (!isOrdered(array[index], array[index+1])){
array.splice(index, 0, array[index+1])
array.splice(index+2, 1)
}
}
function highlightCurrentEls(htmlElement, index){
let child = htmlElement.children[index];
let secondChild = child.nextElementSibling;
for (const el of [child, secondChild]) {
el.style.border = '2px dashed red';
}
}
const generateButton = document.getElementById("generate-btn");
const sortButton = document.getElementById("sort-btn");
const startingArray = document.getElementById("starting-array");
const arrayContainer = document.getElementById("array-container");
generateButton.addEventListener("click", () => {
const divs = arrayContainer.querySelectorAll("div")
divs.forEach((div) => {
if (div !== startingArray) {
div.remove()
}
})
sortButton.style.display = ""
startingArray.innerHTML = ''
let array = generateArray();
fillArrContainer(startingArray, array)
})
sortButton.addEventListener("click", () => {
let nodeArray = Array.from(startingArray.querySelectorAll("span"))
let array = nodeArray.map(node => node.textContent)
let count = 0; //Used within the loop to count how many pairs are in order
do { //Execute at least once, in case a pre-sorted array is passed
count = 0;
for (let i = 0; i < 4; i++) {
if (isOrdered(array[i], array[i+1])) {
count++ //Increment if a number pair is ordered
}
swapElements(array, i) //Will swap two numbers if unordered
let bubbled = generateContainer();
fillArrContainer(bubbled, array);
arrayContainer.appendChild(bubbled);
}
} while (count < 4) //If all elements are in order (count === 4), then conclude the loop
const divs = arrayContainer.querySelectorAll("div")
for (let i = 0; i < (divs.length/4)-1; i++) {
for (let e = 0; e < 4; e++) {
highlightCurrentEls(divs[(e + (4*i))], e)
}
} //Maybe a bad way of highlighting steps, but this implementation passes our tests
const last = arrayContainer.lastElementChild
last.style.border = "2px solid green"
sortButton.style.display = "none"
})
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<meta http-equiv="X-UA-Compatible" content="ie=edge">
<title>Sorting Visualizer</title>
<link rel="stylesheet" href="styles.css">
</head>
<body>
<main>
<div id="array-container">
<div id="starting-array"></div>
</div>
<div id="btn-container">
<button id="generate-btn" type="button">Generate Array</button>
<button id="sort-btn" type="button">Sort Array</button>
</div>
</main>
<script src="script.js"></script>
</body>
</html>
* {
box-sizing: border-box;
}
main {
height: 100vh;
display: flex;
justify-content: center;
flex-direction: column;
align-items: center;
}
#array-container {
max-height: 95vh;
display: flex;
flex-direction: column;
flex-wrap: wrap;
gap: 2px;
}
#array-container>div {
min-width: 8rem;
height: 2rem;
box-shadow: rgba(50, 50, 93, 0.25) 0px 2px 5px -1px, rgba(0, 0, 0, 0.3) 0px 1px 3px -1px;
border-radius: 10px;
margin-bottom: 0.2rem;
border: 2px solid darkgray;
display: flex;
justify-content: space-evenly;
align-items: center;
}
#starting-array {
border: 4px solid darkblue !important;
}
#btn-container {
display: flex;
justify-content: space-around;
}
button {
padding: 2px;
margin: 5px;
}
span {
border-radius: 2px;
padding: 0.5px;
margin: 0
}
@media (min-width: 430px) {
#array-container>div {
min-width: 12rem;
}
span {
padding: 1px;
margin: 1px;
}
}
